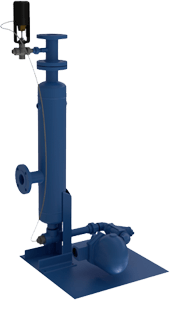

VCC Vertical Condensate Coolers
The VCC Series are installed to reduce condensate temperature to acceptable limits when the condensate is to be discharged to drain. Cooling water is connected to the inlet of the included temperature regulating valve to maintain the desired condensate outlet temperature. All units are vented to atmosphere to ensure any flash steam is properly relieved. A steam trap is included on the drain to eliminate the possibility of steam discharge.
