Description
Model: Ajax E-1250-B
Input MBH: 1250
Supply: 2-½" ANSI FLG
Return: 2-½" ANSI FLG
Condensate: 1-¼"
Gas Inlet: 2" NPT
Vent: 8"
Air Intake: 8"

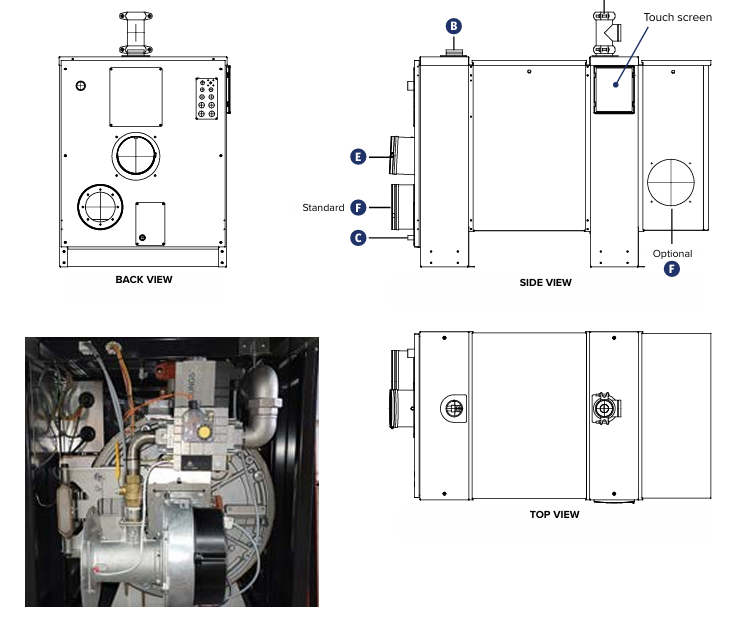

Size: 47 x 34 x 55
Weight lbs: 992
- Ajax E Series Gas Water Heater and Boiler

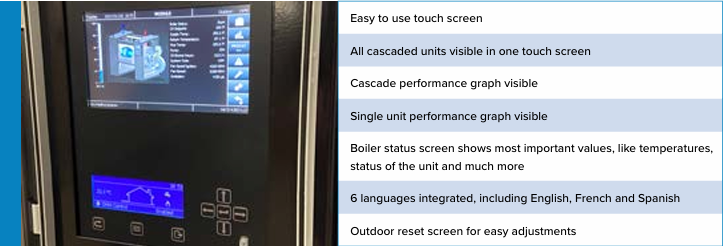

- The Ace Ajax E is a state-of-the-art condensing gas fired water heater and boiler developed to deliver high performance efficiencies, quality, and durability. At the center of this new design is the ASME certified stainless steel water tube heat exchanger combined with an optimized burner and ignition system, available from 1250 to 4000 MBTU input. A fully integrated control system with a full color touch screen interface provides access to, and continuous monitoring of, critical operating parameters allowing the system to operate at up to 98% efficiency (the E-4000 operates at 99.9% efficiency). Additionally, this product will be packaged in an outdoor rated enclosure that minimizes required floor space while offering unparalleled access for scheduled services.
Applications: Hospitals, office buildings, schools, military bases, resorts
Manufacturer Reference | Specs Sheet
Boiler vs Water Heater:
- Boiler - Hydronic space-heating unit for closed-loop systems; higher temperature setpoint up to 194°F; certified to ANSI Z21.3/CSA 4.9 and ASME CSD-1.
- Water Heater - Potable/service hot water unit for domestic or process use; temperature setpoint up to 185°F; certified to ANSI Z21.103/CSA 4.3.
Not sure what to choose? Contact our support team for guidance on selection based on your facility.
