AVT125 Air Vent

Watson McDaniels

  • $83.20
    Unit price per
  • Save $20.80
Shipping calculated at checkout.

Only 10 left!

The AVT125 is used on steam applications up to 125 PSIG for removal of air and non-condensable gases from process equipment, vessels and piping. The air vent should be located at a high point in the system or vessel and can be installed in any orientation.

Catalog Spec Sheet (pdf)

I&M (pdf)

Features

• Simple design for easy maintenance
• All Stainless Steel Internals
• Thermal element is the only moving part

How It Works

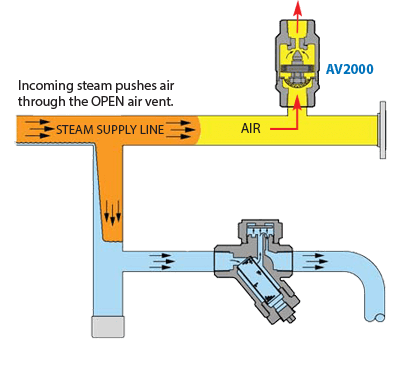

The thermostatic air vent contains a welded stainless steel thermal element that expands when heated and contracts when cooled. When air and non-condensable gases are present, the valve is in the open discharge position. When steam reaches the air vent, the element expands and closes the valve off tightly.

Installation and Maintenance

Air vents should be located at a high point in the system or vessel. The air vent can be installed in any orientation. An isolation valve should be installed to facilitate repair without system shut-down. Unit is in-line repairable. Repair kits are available.
