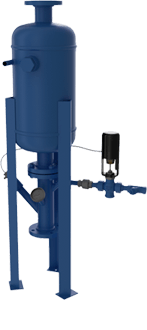

BDS Blowdown Separators
The BDS Series Blowdown Separators are designed to safely separate hot water and the flash steam generated from boilers during blowdown. The vessel is designed to equalize to atmospheric pressure for disposal of the flash and hot water. Stainless steel strike plate and internal steel baffles direct the flow cyclonically for efficient separation. Optional aftercooler packages with temperature regulator available to temper condensate prior to discharge in municipal sewer.

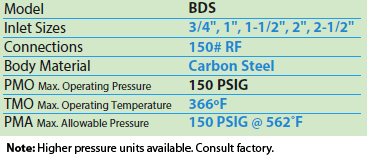

300# FLG available (Code F300). Consult factory.

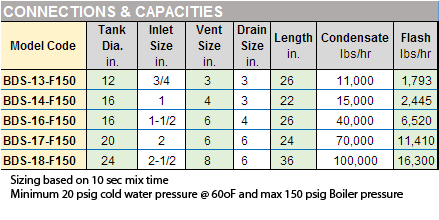

Size standard 150 psig units to match BDS Inlet Size to boiler blowdown valve size. Use the Capacity Table to confirm Blowdown Condensate load is not exceeded. See note regarding base conditions for Boiler Pressure, Blowdown Water Flow and Cooling Water temperature. Consult factory for sizing with alternate conditions.
