Description

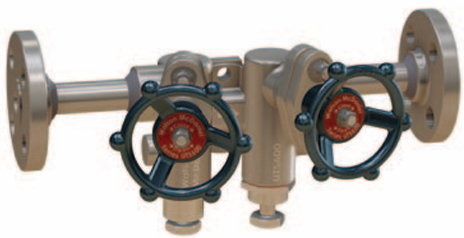

Model: Class 600 Universal Trap Station Connectors - UTS600F Connector Flow to Right by Watson McDaniel
NPT Size/Connection: 1/2"
Weight lbs: 14
Connection: 150# FLG
Series: UTS600R-12-F150
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications. They are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities.
The All Stainless Steel Universal Style Steam Traps feature a permanent installation of the Universal Connector with a 2-bolt mounting arrangement for the Universal Steam Trap Module, allowing the Steam Trap to be removed and replaced in minutes:
- Steam trap is replaced without having to unthread piping
- By removing only 2 bolts with a socket or open-end wrench
- Trap module can swivel 360º on the universal connector allowing proper orientation
All connector styles will operate with any trap module. UTS600 Series Connectors include integral inlet and outlet isolation valves, strainer and blowdown valve on inlet side and test valve on outlet side.

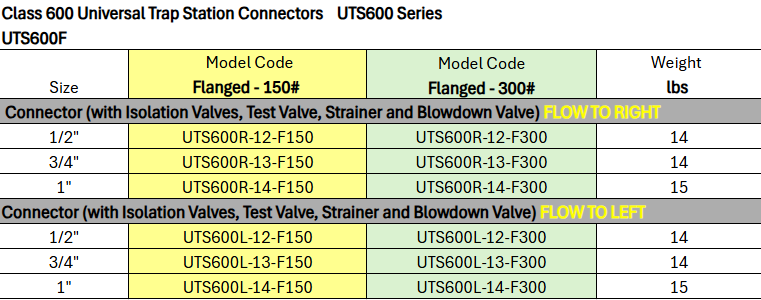

Choose the desired style connector:
- UTS600R - (Flow to Right)
- UTS600L - (Flow to Left)
Note: 1” units include weld adapters.
