Description
Model: Clean Steam Traps - Thermostatic FDA800 by Watson McDaniel

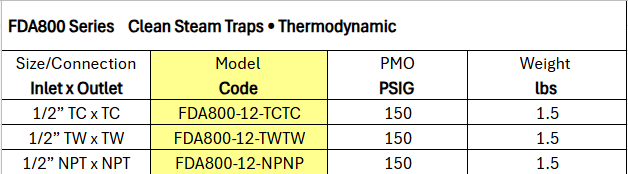

NPT Size/Connection: 1/2"
Weight lbs: 1.5
Connection: TC X TC
Series: FDA800
Inlet x Outlet: 1/2” TC x TC
PMO PSIG: 150
Sanitary Steam Traps are designed to offer free flow-through internal passages by incorporating very smooth internal finishes (20-25 Ra). For periodic passivation and sanitation of the system, these traps offer a tri-clamp connection on the body to allow for removal of the thermal element.
Clean Steam Traps are steam traps designed for similar functionality as the sanitary traps, but do not offer the same level of surface finish.

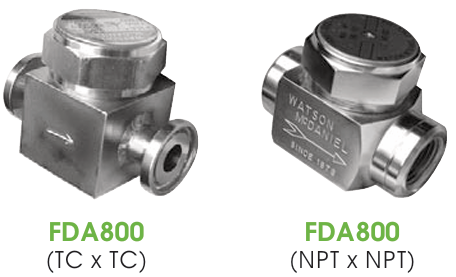

The FDA800 Series Thermodynamic Clean Steam Traps are used in CIP (Clean in Place) and SIP (Sanitize in Place) systems as drip traps on steam mains as well as for drainage on various process vessels such as separators and filters. The thermodynamic trap has a cyclic on/off operation with a disc that is pushed open when condensate is present and pulled closed when steam tries to escape. Trap consists of all 316L stainless steel components.
