Description
Model: Condensate Return Pumps - Pressure Motive Pumps PMPBP Series by Watson McDaniel
NPT Size/Connection: 4" X 4"
Weight lbs: 1050
Connection: 150# FLG
Series: PMPBP
PMO PSIG: 150
The stand-alone Pressure Motive Pump (PMP) consists of the pump tank, the internal operating mechanism, and a set of inlet and outlet check valves. The internal mechanism is equipped with our Patented “Snap-Assure” design which extends the life of the pump. Mechanism incorporates heat-treated stainless steel wear items. These units can operate using steam, air, nitrogen or other pressurized inert gases as the motive force. Depending on the particular model, pump tanks can be made from Ductile Iron, Fabricated Steel or Stainless Steel. An additional receiver or reservoir tank will be required to complete the system.

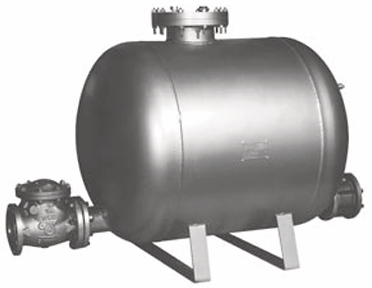

PMPBP Series - Carbon Steel High-Capacity Pressure Motive Pump
The PMPBP is an extremely high-capacity pressure motive pump for applications requiring large transfer of condensate or other liquids. The tank body is made of carbon steel. The internal operating mechanism functions identically to other pumps in the PMP series.
Standard Includes: Body, Cover, Internal mechanism and Check valves.
NOTE: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
