Description
Model: Condensate Return Pumps - Pressure Motive Pumps PMPF Series Skid Mounted Duplex by Watson McDaniel
NPT Size/Connection: 3" X 2"
Weight lbs: 1030
Connection: NPT

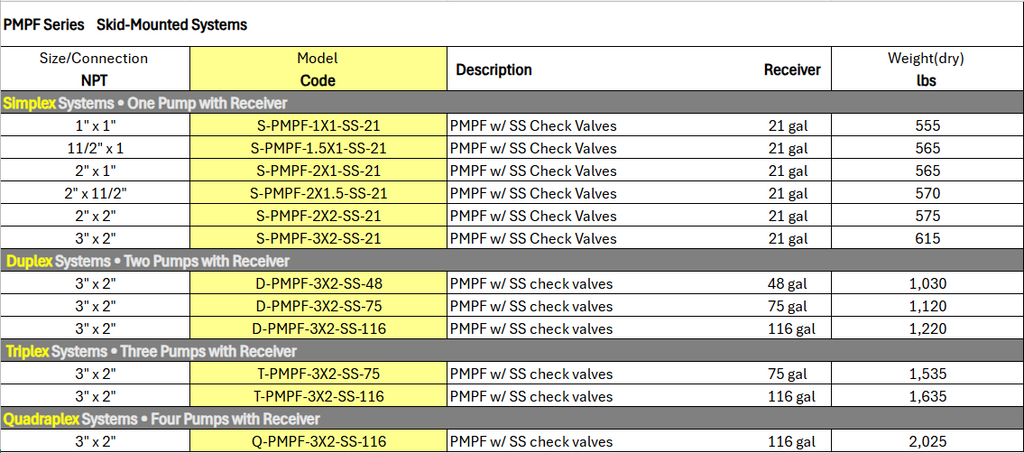

Series: D-PMPF-3X2-SS-48
Receiver Size: 48 gal

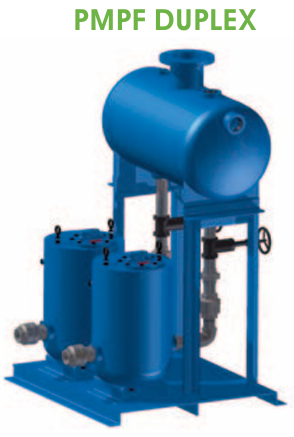

Complete packaged skid systems include one or more Pressure Motive Pumps (PMPs) along with a vented receiver mounted oncommon base. The receiver initially collects the condensate prior to it flowing into the pump tank and temporarily stores the condensate during the PMPs’ discharge cycle when the pump tank is pressured with steam. The receiver and vent must be adequately sized to allow for proper flash steam separation without building up pressure inside the receiver. Higher condensate pressures and temperatures, or higher condensate loads require larger receiver and vent sizes. Duplex & Triplex Systems can be used for increased capacity or in the event of a single pump failure. All components of the system are properly sized and pre-piped together; requiring onlyfour connections to be made in the field.
Includes: Heavy-duty Pump, Steel Receiver, Isolation Valve(s), SS Check Valves, Schedule 40 Piping, and mounted on a Steel Base.
Note: " Wafer Check Valve option available on packaged systems to help reduce installation space for applications with limited fill head. Factory reserves the right to substitute as needed.
NOTE: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
