Description

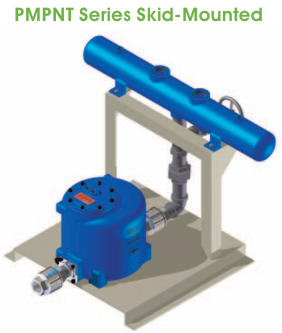

Model: Condensate Return Pumps - Pressure Motive Pumps PMPNT Series Skid Mounted Simplex by Watson McDaniel
NPT Size/Connection: 1" X 1"
Weight lbs: 137
Connection: NPT

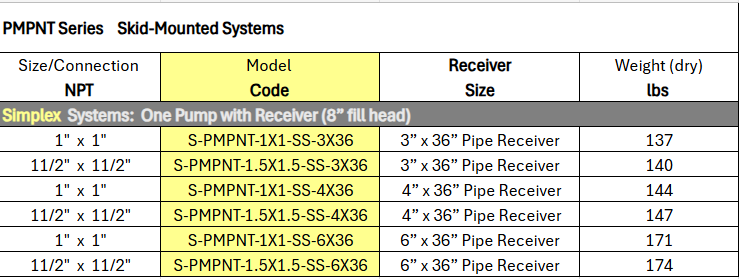

Series: S-PMPNT-1X1-SS-3X36
Receiver Size: 3” x 36” Pipe Receiver
Complete packaged skid systems include one or more Pressure Motive Pumps (PMPs) along with a vented receiver mounted oncommon base. The receiver initially collects the condensate prior to it flowing into the pump tank and temporarily stores the condensate during the PMPs’ discharge cycle when the pump tank is pressured with steam. The receiver and vent must be adequately sized to allow for proper flash steam separation without building up pressure inside the receiver. Higher condensate pressures and temperatures, or higher condensate loads require larger receiver and vent sizes. Duplex & Triplex Systems can be used for increased capacity or in the event of a single pump failure. All components of the system are properly sized and pre-piped together; requiring onlyfour connections to be made in the field.
Includes: Heavy-duty Pump, Steel Receiver, Isolation Valve(s), SS Check Valves, Schedule 40 Piping, and mounted on a Steel Base.
