Description
Model: Condensate Return Pumps - Pressure Motive Pumps PMPSS Series by Watson McDaniel
NPT Size/Connection: 1" X 1"
Weight lbs: 215
Connection: NPT
Series: PMPSS
PMO PSIG: 150

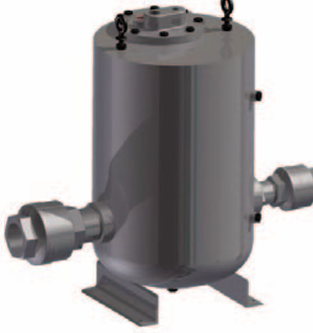

The stand-alone Pressure Motive Pump (PMP) consists of the pump tank, the internal operating mechanism, and a set of inlet and outlet check valves. The internal mechanism is equipped with our Patented “Snap-Assure” design which extends the life of the pump. Mechanism incorporates heat-treated stainless steel wear items. These units can operate using steam, air, nitrogen or other pressurized inert gases as the motive force. Depending on the particular model, pump tanks can be made from Ductile Iron, Fabricated Steel or Stainless Steel. An additional receiver or reservoir tank will be required to complete the system.

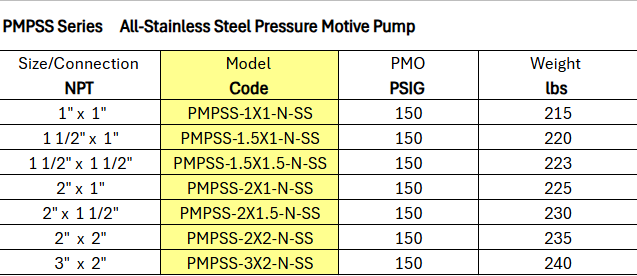

PMPSS Series - All-Stainless Steel Pressure Motive Pump
The High Corrosion Resistance PMPSS pressure motive pump body & cover are manufactured from316L Stainless Steel. These pumps receive the ASME “UM” code stamp. This pump is designed to be used in harsh and corrosive environments.
Standard Includes: Body, Cover, Internal mechanism and Check valves.
NOTE: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
