Description
Model: Float and Thermostatic Steam Trap - FT Series 15 PMO PSIG by Watson McDaniel
NPT Size/Connection: 3/4"
Weight lbs: 7.5
Cross Ref: 15-B3,FT015H-3
Connection: NPT
Series: FT3-015-13-N
PMO PSIG: 15
Applications: Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.
FT Series steam traps are designed for operating pressures up to 75 PSIG. These float and thermostatic traps are used for lower pressure HVAC and light industrial process applications. They are used on unit heaters, water heaters, pressing machines, heat exchangers and coils. For drip applications, such as draining steam mains and steam supply lines, use 3/4” FT-075 (FT73-075-13N) for steam systems up to 75 PSIG. F&T traps have excellent air-handling capability, which make them a better choice than Inverted Bucket traps for most process applications. FT Series traps have a dual inlet-outlet H-Pattern connection allowing for additional flexibility in installation.

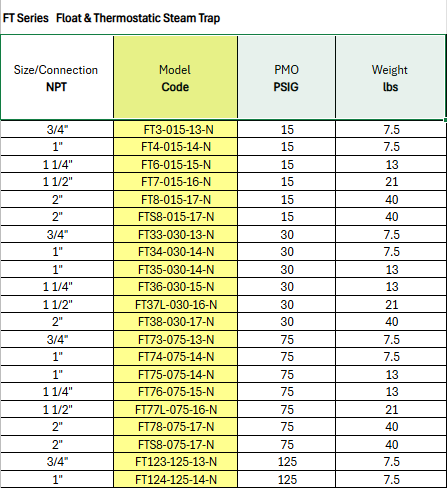

Helpful Selection Information: Select a model that can handle the maximum working pressure of the steam system. For example, the FT3-015 has a maximum working pressure of 15 PSIG. Available in 3/4” through 2” NPT connections. Select these models for steam systems with maximum working pressure of 75 PSIG.
Note: Our FT Series are intended for lower pressure steam systems (under 75 PSIG) and should be used for REPLACEMENT in existing installations. For New Installations, the WFT or FTT Series are recommended as they offer a more complete pressure range.
