Description
Model: Float and Thermostatic Steam Trap - FTES Series 125 PMO PSIG by Watson McDaniel
NPT Size/Connection: 2 1/2"
Weight lbs: 150
Cross Ref: FTB-125-CS,150-LS-10
Connection: NPT
Series: FTES-125-18-N
PMO PSIG: 125
Applications: Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.
The FTE & FTES Series Float & Thermostatic Steam Traps are HIGH CAPACITY Float & Thermostatic Steam Traps that were specifically designed for removing condensate and air from HVAC and Industrial process applications with extremely high condensate load requirement. Examples include Reboilers, Absorption Chillers and large Air Handling Coils. These Ultra high capacity steam traps have Ductile Iron or Steel bodies and contain a high quality Welded Stainless Steel Thermostatic Air Vent and stainless seat and mechanism. All units are in-line repairable. The FTE Series have Ductile Iron bodies and are available in 11/2 thru 21/2 NPT connections. The FTES Series have Cast Steel bodies and are available in 21/2 NPT, Socket Weld andFlange connections. Special Live Orifice air vents are available for superheated steam applications.

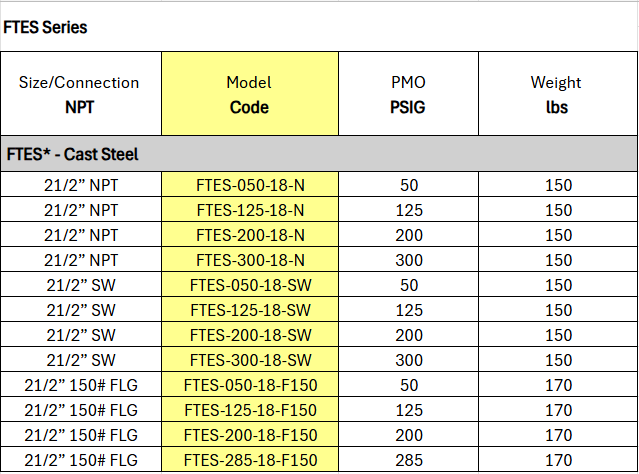

FTE and FTES
- FTE – Ductile Iron
- FTES – Cast Steel
Helpful Selection Information: Select a model that can handle the maximum working pressure of the steam system. For example, the FTES-050 has a maximum working pressure of 50 PSIG.
Note: For FTES, Max Operating Steam Pressure is upto 300 PSIG
