Description

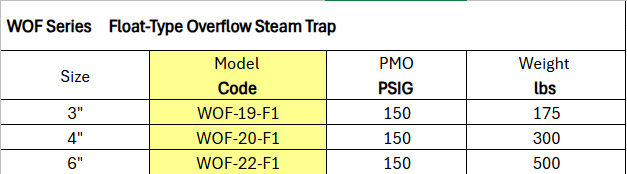

Model: Float-Type Overflow Steam Trap -WOF Series by Watson McDaniel
NPT Size/Connection: 3”
Weight lbs: 175
Connection: 2 bolt
Series: WOF
PMO PSIG: 150
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications. They are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities.
The All Stainless Steel Universal Style Steam Traps feature a permanent installation of the Universal Connector with a 2-bolt mounting arrangement for the Universal Steam Trap Module, allowing the Steam Trap to be removed and replaced in minutes:
- Steam trap is replaced without having to unthread piping
- By removing only 2 bolts with a socket or open-end wrench
- Trap module can swivel 360º on the universal connector allowing proper orientation

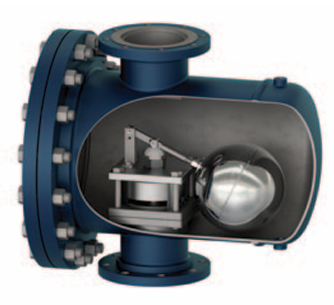

The WOF Series Float-Type Overflow Steam Trap is designed to trap steam and safely drain any excess condensate overflow from a deaerator or similar vessel. These traps have a carbon steel fabricated body (stainless steel optional) with 1/16" corrosion allowance and are UM Code Stamped. The internal float and valve assembly are stainless steel to provide long service life in harsh conditions. The valve assembly has a balanced piston design for increased shut-off tightness. Smaller sizes available with the FT600 Series
The UTD450HSP is a higher capacity version.
NOTE: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
