HD Regulator - Pilots

Kits and Parts for All HD-Pilots such as PP/PP5, PBP, PDP, PA, PT/PTU,ect. (Pilot Operated Regulator)

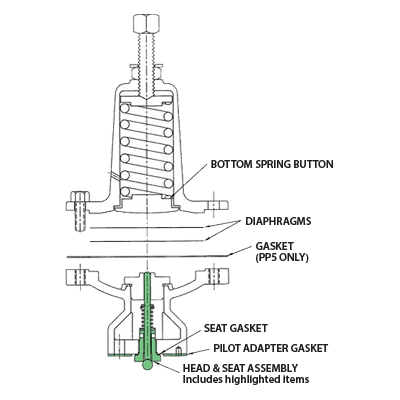

PP & PP5 Pressure Pilot Kit Consists of:
(2) diaphragms
(1) head & seat assembly
(1) seat gasket
(1) pilot adapter gasket
(1) diaphragm gasket (PP5 only)

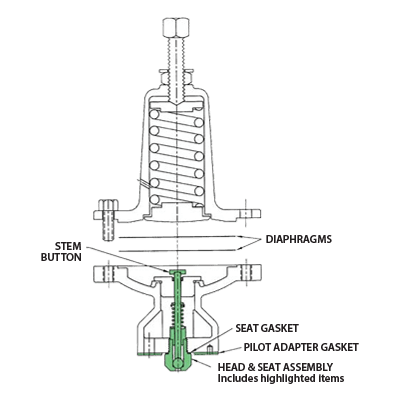

PBP Back Pressure Pilot Kit Consists of:
(2) diaphragms
(1) seat gasket
(1) head & seat assembly
(1) pilot adapter gasket

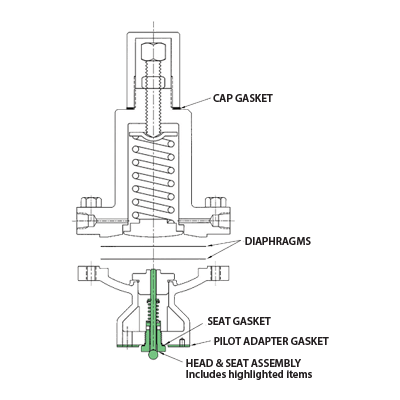

PDP Differential Pilot Kit Consists of:
(2) diaphragms
(1) seat gasket
(1) head & seat assembly
(1) pilot adapter gasket
(1) cap gasket

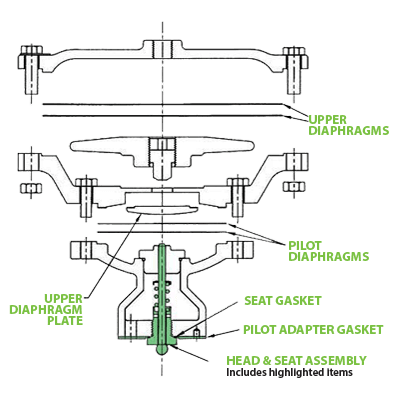

Air Pilot Kit Consists of:
(2) upper diaphragms
(1) seat gasket
(2) pilot diaphragms
(1) pilot adapter gasket
(1) head & seat assembly

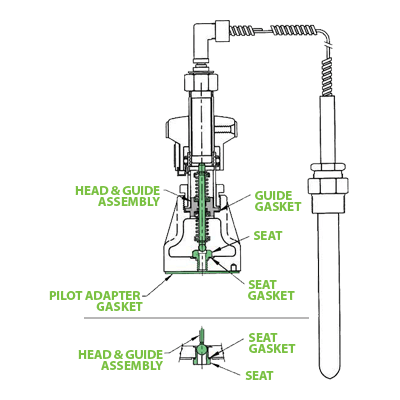

PT & PTU Pilot Kit Consists of:
(1) head & guide assembly
(1) seat & seat gasket
(1) pilot adapter gasket
(1) guide gasket

Note: Spence replacement kits available for PP/PP5, PDP, PBP, and PA Pilots. Add SP suffix code to the above Order Numbers. Example: W-KIT-802-01-SP
