Description

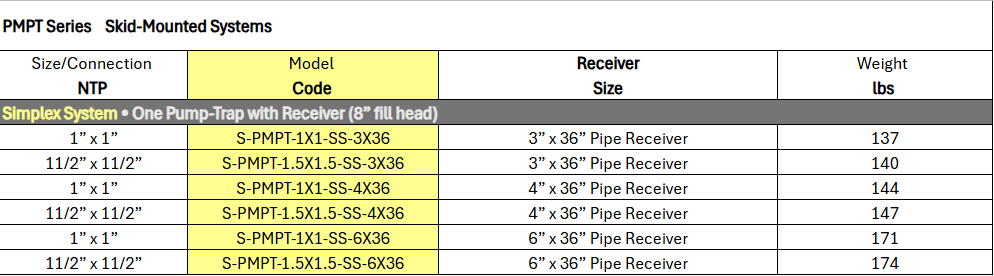

Model: Non-Electric Condensate Return Pump – Pump-Trap Combination, PMPT Series Simplex Skid Mounted by Watson McDaniel
NPT Size/Connection: 1" X 1"
Weight lbs: 137
Connection: Default
Series: S-PMPT
Receiver Size: 3” x 36” Pipe Receiver
A Pump-Trap is used in place of a Steam Trap to drain condensate from a process application when the steam pressure in the process is not sufficient to push the condensate thru the steam trap and into the condensate return line. When steam pressure in a Heat Exchanger is less than the back pressure on the discharge side of the steam trap, the condensate backs up, causing inconsistent heat transfer and potential waterhammer. This frequently occurs on applications where a temperature control valve is used to supply steam to a Heat Exchanger based on product temperature and flow rate.To prevent condensate backup under these conditions, a pump-trap must be used in place of a steam trap.

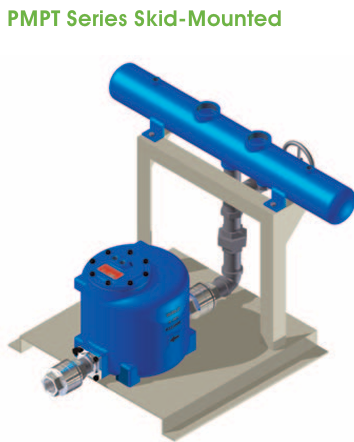

PMPT Skid Mounted Systems - Ductile Iron Pump-Trap Combination with Internal Steam Trap.
Includes: Pump-Trap, Steel Receiver, Isolation Valve(s), SS Check Valves, Schedule 40 Piping, and mounted on a Steel Base.
