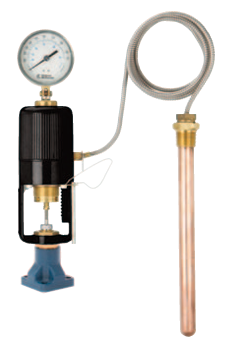

Watson McDaniel PTRP-91 & PTRP-94 Series — Temperature Pilots for HD Regulators
The PTRP Temperature Pilot is used with Watson McDaniel HD Regulators to control temperature in steam and process heating systems. It maintains precise temperature control for equipment such as oil heaters, ovens, process heaters, dryers, and jacketed kettles. The PTRP provides faster response and can regulate lower temperature ranges than standard PT Pilots.
Product Overview
- Available in both Indicating and Non-Indicating models
- Used for temperature control in a variety of industrial steam applications
- Faster response time for improved regulation
- Compatible with Watson McDaniel HD Regulator assemblies
Technical Specifications
- Temperature Control Range: 20 – 440 °F (varies by model)
- Steam Inlet Pressure Range: 15 – 300 PSIG (standard main valve)
- Steam Inlet Pressure Range (Low-Pressure Valve): 5 – 20 PSIG
- Body Material: Cast Steel
- Thermal System: Copper sensing bulb with 8′ capillary, SS armored protection
Available Models
| Range Code | Temperature Range (°F) | Model Code (Non-Indicating) | Model Code (Indicating) | Weight (lb) |
|---|---|---|---|---|
| 01 | 20–70 | PTRP-910108S15 | PTRP-940108S15 | 8 |
| 02 | 40–90 | PTRP-910208S15 | PTRP-940208S15 | 8 |
| 03 | 50–140 | PTRP-910308S15 | PTRP-940308S15 | 8 |
| 04 | 50–145 | PTRP-910408S15 | PTRP-940408S15 | 8 |
| 05 | 105–175 | PTRP-910508S15 | PTRP-940508S15 | 8 |
| 06 | 105–195 | PTRP-910608S15 | PTRP-940608S15 | 8 |
| 07 | 120–215 | PTRP-910708S15 | PTRP-940708S15 | 8 |
| 09 | 155–250 | PTRP-910908S15 | PTRP-940908S15 | 8 |
| 10 | 185–280 | PTRP-911008S15 | PTRP-941008S15 | 8 |
| 11 | 225–310 | PTRP-911108S15 | PTRP-941108S15 | 8 |
| 12 | 255–380 | PTRP-912208S15 | PTRP-942208S15 | 8 |
| 13 | 295–420 | PTRP-913308S15 | PTRP-943308S15 | 8 |
| 14 | 310–440 | PTRP-914408S15 | PTRP-941408S15 | 8 |
Options & Accessories
- Low-Pressure Temperature Pilot Option
Note: The PTRP Series Temperature Pilots are accessories for HD Regulators and must be used with compatible main valves. Not standalone control devices.
