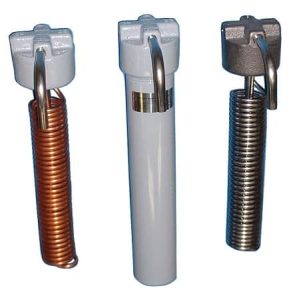

Sample Cooler SC0004

Type: 1 (Compact)
Coil Material: 316 Stainless Steel
Maximum Coil Pressure: 3,000 PSI @ 1,000 °F
Coil Surface Area: 1/4″ OD – 2.6 sq. ft.
Shell & Cap Material: Carbon Steel (CS) & 316 Stainless Steel
Overall Height: 31.50 ″
Weight: 25 lbs

Connections (all on top cap):
• Sample inlet: 1/4″ NPT (vertical, straight down)
• Cooling-water inlet: 1/4″ NPT (left side of cap)
• Cooling-water outlet: 1/4″ NPT (right side of cap)
• Cooled sample exits from the bottom spout.

Typical Applications:
• When you need both a high temperature/pressure coil (316SS) and more surface area (2.6 sq. ft.) but still in a single-cap design.
• Great for labs handling high-pressure hot steam or oils in a compact space.
• Maintenance is simple—unscrew cap, swap or clean coil.

Refer Manufacturer's Website.
