Description

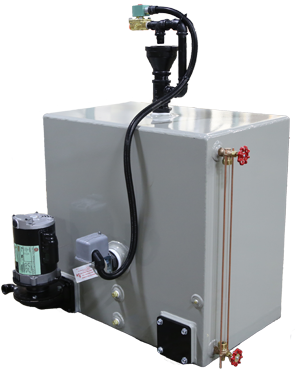

Model: Sterlco 4100 Series Boiler Feed Units-4124-GF (Suplex)
Part Number: 4124-GF
Sterlco® atmospherically vented boiler feed tanks are designed to supply water to the boilers to maintain water supply at various operating loads. The 4100 Series steel unit is designed for many applications. Tank sizes range from 8-714 gallons.
- Voltage: 1/60/115-230
- Shipping Weight: 200 lb
- Boiler HP: 30
- Discharge Pressure: 20 PSI
- Pump Capacity: 6 GPM
- Motor HP: 1/3
- Recirculation Capacity: 30 Gal
- Cast iron tank and pump bracket, heavy-duty cast iron pump housing and bracket, along with a brass impeller to assure long operating life.
- Sterl-Seal” ceramic pump seal (250°F)
Applications: Boiler Feed Units, commercial HVAC, boiler rooms
Manufacturer Reference | Specs Sheet
Voltage Selection Guide:
- 1/60/115-208-230 - Single-phase motor for light commercial applications. Compatible with standard building electrical service.
- 3/60/208-230-460 - Three-phase motor for larger systems or industrial settings. Requires three-phase power supply.
Not sure what to choose? Contact our support team for guidance on voltage selection based on your facility.
