Description

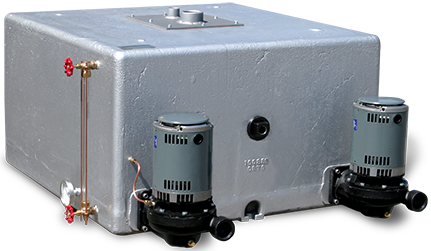

Model: Sterlco 4200 Series Boiler Feed Units-42210-GDF( Duplex)
Part Number: 42210-GDF
Sterlco® atmospherically vented boiler feed tanks are designed to supply water to the boilers to maintain water supply at various operating loads. The 4200 Series cast iron unit is designed to suit many applications. Tank sizes range from 6 – 120 gallons.
- Voltage: 1/60/115-230
- Shipping Weight: 820 lb
- Boiler HP: 75
- Discharge Pressure: 20 PSI
- Pump Capacity: 15 GPM
- Motor HP: 1/2
- Recirculation Capacity: 75 Gal
- The Sterlco® Centrifugal Pumps are capable of pumping hot condensate up to 200° F. These pumps are equipped with heavy-duty cast iron pump housing and bracket, along with a brass impeller to assure long operating life.
- Sterl-Seal” ceramic pump seal (250°F)
Applications: Boiler Feed Units, commercial HVAC, boiler rooms
Manufacturer Reference | Specs Sheet
Voltage Selection Guide:
- 1/60/115-208-230 - Single-phase motor for light commercial applications. Compatible with standard building electrical service.
- 3/60/208-230-460 - Three-phase motor for larger systems or industrial settings. Requires three-phase power supply.
Not sure what to choose? Contact our support team for guidance on voltage selection based on your facility.
NOTE: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
