Description
Model: Sterlco 4300 Series Condensate Units-43420-JD (Duplex)
Capacity Sq. Ft. E.D.R.: 20000
Discharge Pressure P.S.I.: 40
Pump Cap (GPM): 30.0
Motor HP: 1 1/2
Rec Cap (Gal): 30
Weight lbs: 310
Part Number: 43420-JD

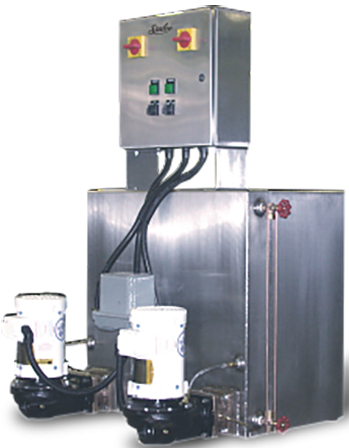

Sterlco® atmospherically vented condensate tanks are designed for pumping hot condensate throughout the steam system. The 4300 Series stainless steel unit is designed for wash down duty, sterilization, and corrosive environment applications. Tanks sizes range from 8-714 gallons.
- Voltage: 1/60/115-230
- Shipping Weight: 310 lb
- Boiler HP:
- Discharge Pressure: PSI
- Pump Capacity: 30.0 GPM
- Motor HP: 1 1/2
- Recirculation Capacity: 30 Gal
- The Sterlco® Centrifugal Pumps are capable of pumping hot condensate up to 200° F. These pumps are equipped with heavy-duty cast iron pump housing and bracket, along with a brass impeller to assure long operating life.
- Sterl-Seal” ceramic pump seal (250°F)
Applications: Series Condensate Units, commercial HVAC, boiler rooms
Manufacturer Reference | Specs Sheet
Voltage Selection Guide:
- 1/60/115-208-230 - Single-phase motor for light commercial applications. Compatible with standard building electrical service.
- 3/60/208-230-460 - Three-phase motor for larger systems or industrial settings. Requires three-phase power supply.
Not sure what to choose? Contact our support team for guidance on voltage selection based on your facility.
