Description

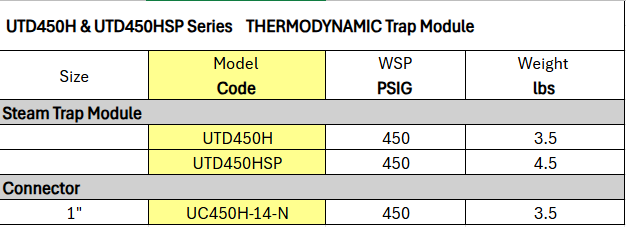

Model: Thermodynamic Steam Trap Module - UTD450H and UTD450HSP Series by Watson McDaniel
NPT Size/Connection: Universal
Weight lbs: 3.5
Connection: 2 bolt
Series: UTD450H
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications. They are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities.
The All Stainless Steel Universal Style Steam Traps feature a permanent installation of the Universal Connector with a 2-bolt mounting arrangement for the Universal Steam Trap Module, allowing the Steam Trap to be removed and replaced in minutes:
- Steam trap is replaced without having to unthread piping
- By removing only 2 bolts with a socket or open-end wrench
- Trap module can swivel 360º on the universal connector allowing proper orientation

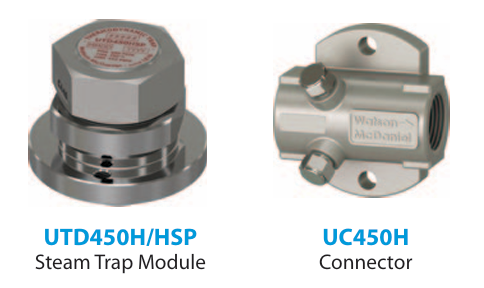

The UTD450H Series Trap Module is a highly specialized Thermodynamic Steam Trap Module. Designed to mount on 1" UC450H Universal Quick-Change connectors, it offers extremely high capacity capability for special drip applications such as steam tunnels and manholes where long distances between steam traps and deteriorating pipe insulation are common. Combined with potential groundwater accumulations, capacity requirements in these applications far exceed normal drip applications. With only 2- bolts the non-swivel steam trap module can be quickly replaced making this design ideally suited for hazardous locations. Two bottom port options are included for possible monitoring.
The UTD450HSP is a higher capacity version.
Note: ax Operating Steam Pressure is 450 PSIG
