Description
Model: Thermodynamic Steam Trap - WT1000 Series by Watson McDaniel
NPT Size/Connection: 1/2"
Weight lbs: 1.25
Cross Ref: MST21
Connection: NPT
Series: WT1000
The Thermodynamic Steam Trap is simple and compact with a single moving part (disc) which opens to discharge condensate and closes in the presence of steam. Body materials are available in Stainless and Alloy Steels for pressures up to 3,600 psig. It is widely used in higher pressure drip applications and critical tracing applications where condensate back-up is not permitted.
Applications: Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.

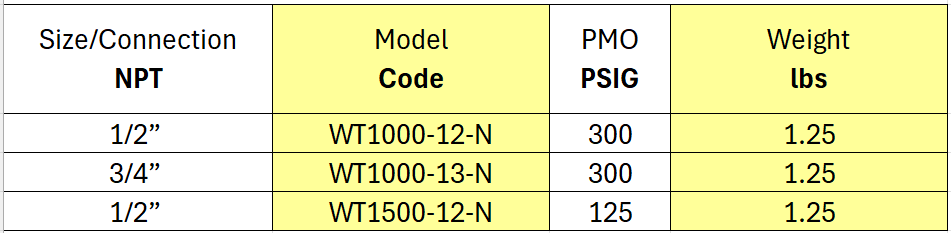

The WT1000 is a Low-Capacity Thermostatic Steam Trap specifically sized for steam tracing applications. It is also commonly used as an air-vent for heat exchangers. Available in 1/2 and 3/4 NPT threaded connections. The WT1000 is seal welded and therefore Non-Repairable. It is NOT available with a strainer. This product can NOT be welded in-line or failure of the Thermal Element may occur. The WT1500 is a repairable version with increased capacity; ideal for sterilizers.
