Description
Model: Thermostatic Steam Trap - Radiator Trap - TA25B and TA125 Series by Watson McDaniel
NPT Size/Connection: 1/2"
Weight lbs: 1.5
Cross Ref: N125,RTA-125
Connection: NPT
Series: TA25B & TA125
PMO PSIG: 25.0

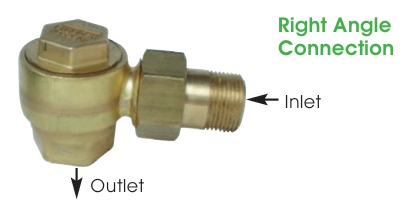

The TA25B & TA125 Series Radiator Traps with Right Angle Connection are Thermostatic Steam Traps that were specifically designed for removing condensate and air from 2-pipe steam heating systems. The bodies are made from a high-quality brass forging and can be fully repaired while the product remains in-line by removing the cap and easily replacing the seat and thermal element. They are available in 1/2 & 3/4 NPT connections. These traps are available in two pressure ranges: 25 & 125 PSIG. The TAHC125 is a high-capacity version for larger radiator or sterilizer applications and has a Maximum Operating Pressure of 125 PSIG.
Note: Max Operating Steam Pressure 125 PSIG.
