Description

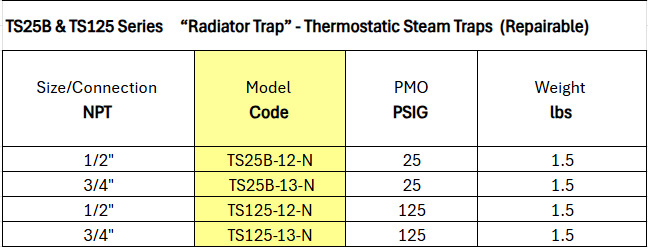

Model: Thermostatic Steam Trap - Radiator Trap - TS25B and TS125 Series by Watson McDaniel
NPT Size/Connection: 1/2"
Weight lbs: 1.5
Cross Ref: 122S,1GHSW,3GHSW
Connection: NPT
Series: TS25B & TS125
PMO PSIG: 25.0
Applications: Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.

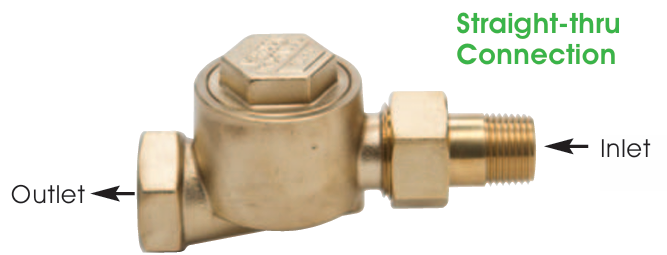

The TS25B & TS125 Series Radiator Traps with Straight-thru (in-line) Connection are Thermostatic Steam Traps that were specifically designed for removing condensate and air from 2-pipe steam heating systems. The bodies are made from a high-quality brass forging and can be fully repaired while the product remains in-line by removing the cap and easily replacing the seat and thermal element. They are available in 1/2 & 3/4 NPT connections. These traps are available in two pressure ranges: 25 & 125 PSIG.
Note: Max Operating Steam Pressure 125 PSIG.
