Description

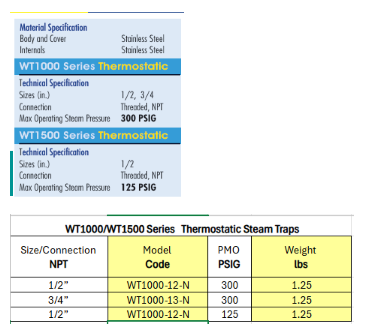

Model: Thermostatic Steam Trap - WT1000 Series by Watson McDaniel
NPT Size/Connection: 1/2"
Weight lbs: 1.25
Cross Ref: MST21
Connection: NPT
Series: WT1000
The WT1000 is a Low-Capacity Thermostatic Steam Trap specifically sized for steam tracing applications. It is also commonly used as an air-vent for heat exchangers. Available in 1/2 and 3/4 NPT threaded connections. The WT1000 is seal welded and therefore Non-Repairable. It is NOT available with a strainer. This product can NOT be welded in-line or failure of the Thermal Element may occur. The WT1500 is a repairable version with increased capacity; ideal for sterilizers.
