Description

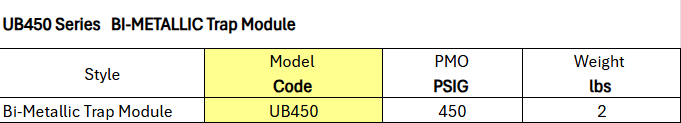

Model: Universal Trap Modules and Connectors - BI-METALLIC Trap Module UT450 Series by Watson McDaniel
NPT Size/Connection: Universal
Weight lbs: 2
Connection: 2 bolt
Series: UB450
PMO PSIG: 450
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications. They are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities.
The All Stainless Steel Universal Style Steam Traps feature a permanent installation of the Universal Connector with a 2-bolt mounting arrangement for the Universal Steam Trap Module, allowing the Steam Trap to be removed and replaced in minutes:
- Steam trap is replaced without having to unthread piping
- By removing only 2 bolts with a socket or open-end wrench
- Trap module can swivel 360º on the universal connector allowing proper orientation
The UB450 Bi-Metallic Steam Trap Module is used on steam tracing
and small process applications where accurate control of condensate discharge temperature is required.
The UB450 mounts to any 2-bolt Quick-Change Universal Connector.
Max Operating Steam Pressure up to 450 PSIG
Helpful Selection Information: Initial Opening Temperature of the trap can
be set from 120˚F to 390˚F.
