Description
Model: Universal Trap Modules and Connectors - Float & Thermostatic Steam Trap Module UFT450 Series by Watson McDaniel
NPT Size/Connection: Universal
Weight lbs: 5.5
Connection: 2 bolt
Series: UFT450

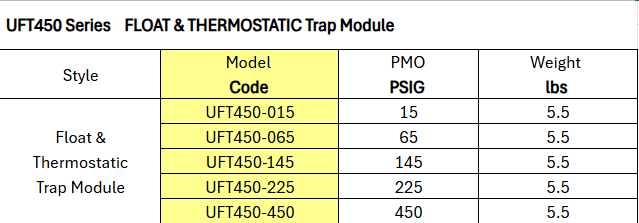

PMO PSIG: 15
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications. They are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities.

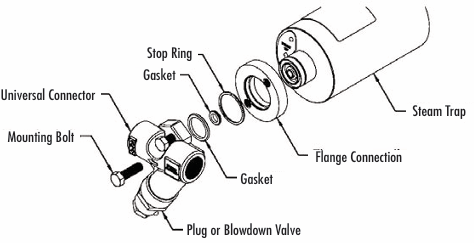

The All Stainless Steel Universal Style Steam Traps feature a permanent installation of the Universal Connector with a 2-bolt mounting arrangement for the Universal Steam Trap Module, allowing the Steam Trap to be removed and replaced in minutes:
- Steam trap is replaced without having to unthread piping
- By removing only 2 bolts with a socket or open-end wrench
- Trap module can swivel 360º on the universal connector allowing proper orientation

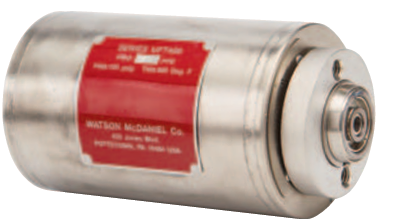

The UFT450 Series Float & Thermostatic Steam Trap Module are typically used on process equipment that generate light condensate loads and require excellent air handling capabilities. These relatively low capacity float & thermostatic trap modules can also be used in drip service on steam mains and steam supply lines. The UFT450 mounts to any 2-bolt
Max Operating Steam Pressure up to 450 PSIG

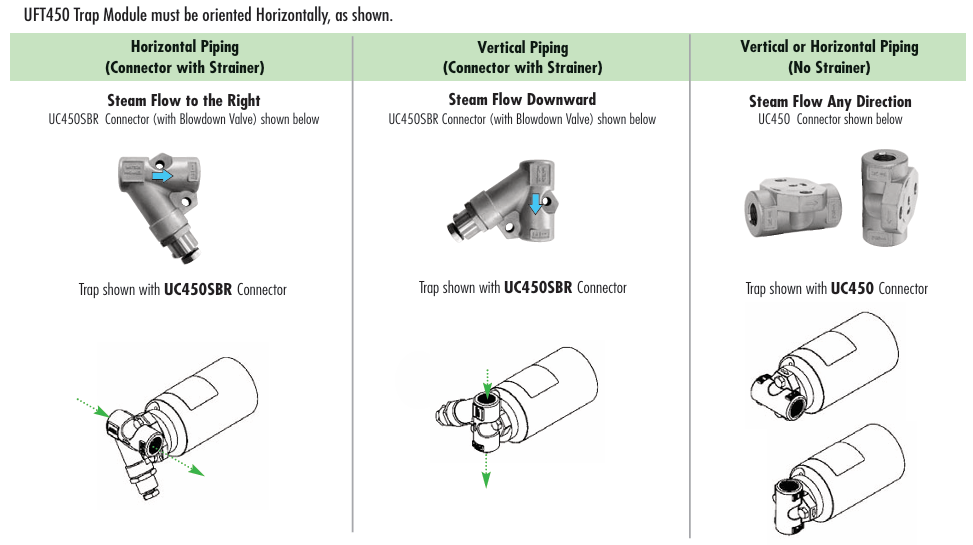

Connector Selection to use with UFT450
- UC450 (No Strainer)
- UC45OSR (Strainer)
- UC450SBR (Strainer & Blowdown Valve)
- UC450SL (Strainer)
- UC450SBL (Strainer & Blowdown Valve)
- UT600R (Test Station)
Helpful Selection Information: Make certain to select a model that can handle the maximum working pressure of the steam system.
