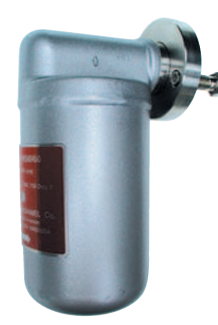

Universal Trap Modules and Connectors Steam Trap - Inverted Bucket Universal Steam Trap Module USIB450 Series by Watson McDaniel

Model: Universal Trap Modules and Connectors Steam Trap - Inverted Bucket Universal Steam Trap Module USIB450 Series by Watson McDaniel
NPT Size/Connection: Universal
Weight lbs: 5.75
Connection: 2 bolt
Series:  USIB450
PMO PSIG:  20

Applications: Draining condensate from steam mains and steam supply lines. They can also be used for steam tracing applications.

The USIB450 Series Inverted Bucket type Steam Trap Module were specifically designed for removing condensate from steam mains & steam supply lines. Inverted Bucket traps can also be used on unit heaters, laundry equipment and other less critical process applications where slow start-up due to poor air handling characteristics can be tolerated.

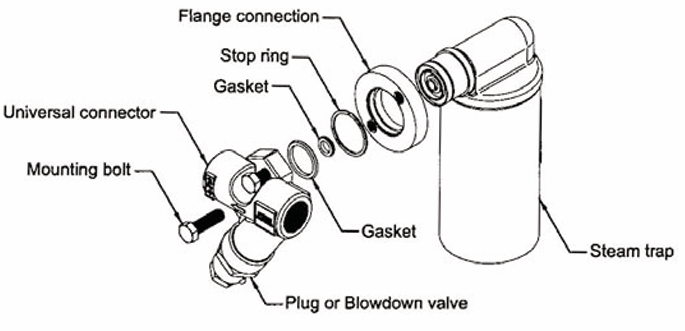

Maximum Steam Pressure is 450 PSIG. Model USIB450H is physically larger and has higher capacity than Model USIB450. Mounts to any 2-bolt Quick-Change Universal Connector.

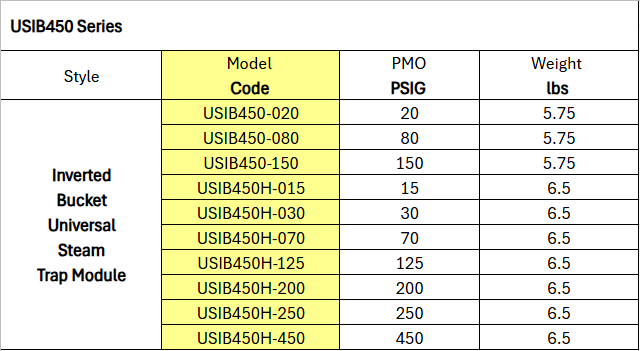

USIB450 vs USIB450H Series

• USIB450 – Normal Capacity
• USIB450H – Higher Capacity than USIB450

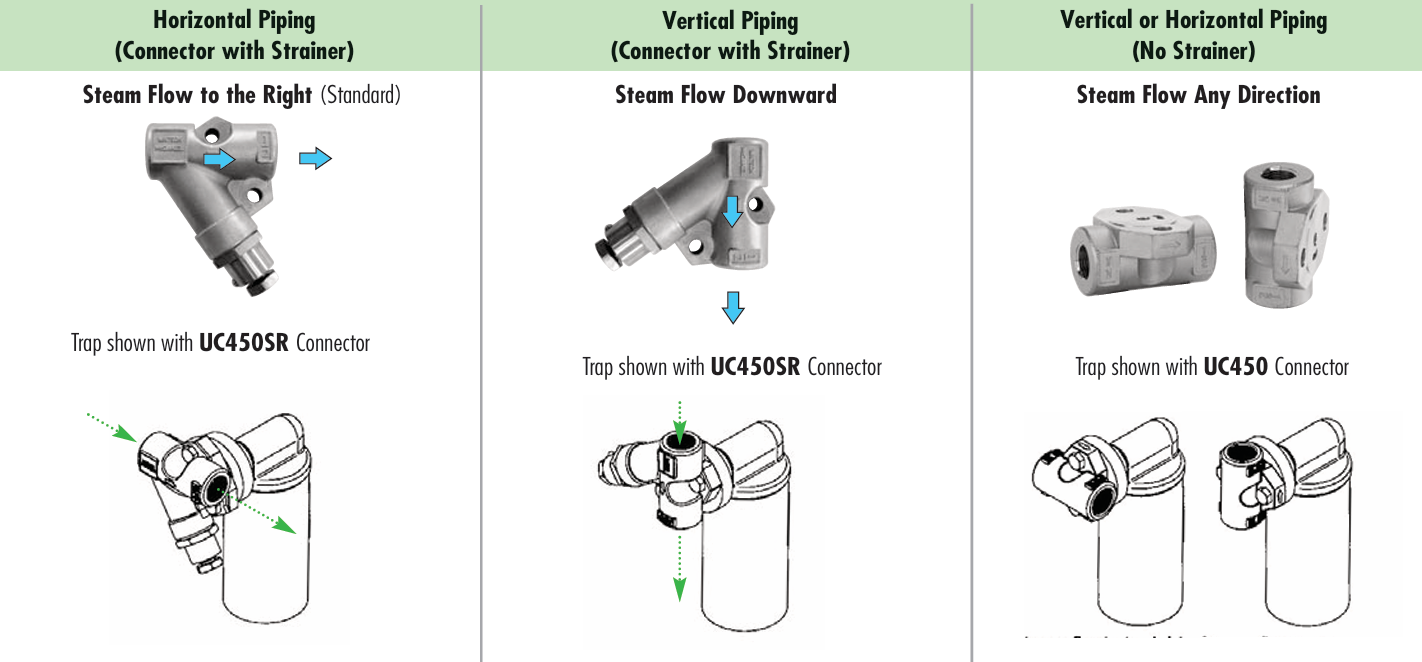

Connector Selection to use with USIB450:

• UC450 (No Strainer)
• UC450SR (Strainer)
• UC450SBR (Strainer & Blowdown Valve)
• TS600R (Test Station)

Note: PMO = Maximum Working Pressure is 450 PSIG

Helpful Selection Information: Make certain to select a model that can handle the maximum working pressure of the steam system. Choose a USIB450 or higher capacity USIB450H depending on capacity requirements.
