Description
Model: Universal Trap Modules and Connectors - Thermodynamic Trap Module UTD450 Series Top Mount by Watson McDaniel
NPT Size/Connection: Universal
Weight lbs: 1.75
Connection: 2 bolt
Series: UTD450
PMO PSIG: 450
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications. They are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities.

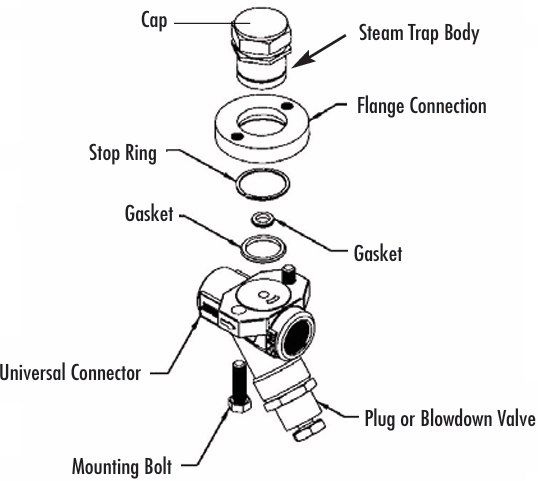

The All Stainless Steel Universal Style Steam Traps feature a permanent installation of the Universal Connector with a 2-bolt mounting arrangement for the Universal Steam Trap Module, allowing the Steam Trap to be removed and replaced in minutes:
- Steam trap is replaced without having to unthread piping
- By removing only 2 bolts with a socket or open-end wrench
- Trap module can swivel 360º on the universal connector allowing proper orientation

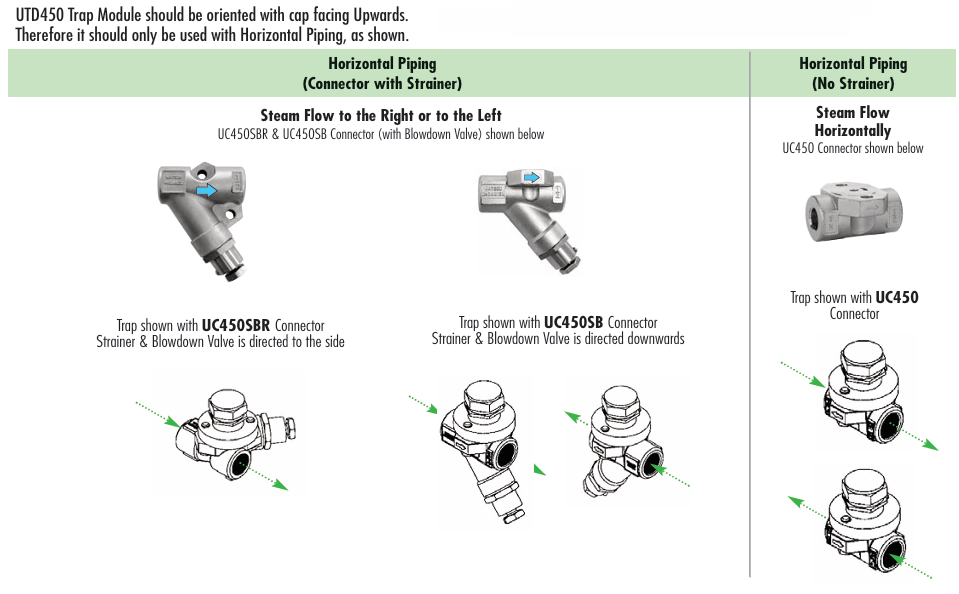

The UTD450 Thermodynamic Trap Modules were designed to work as drip traps for the draining of condensate from steam mains and other steam supply lines. This model is only recommended for horizontal piping installations; cap should be oriented upwards. These trap modules mount to any 2-bolt Quick-Change Universal Connector.

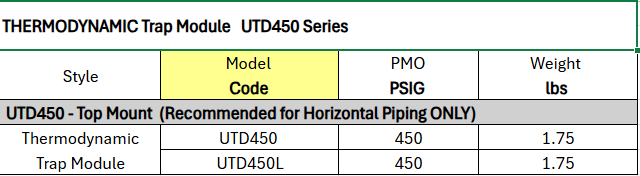

UTD450L is Low-Capacity Model.
- UTD450 – Top Mount (Recommended for Horizontal Piping ONLY) and Max Operating Pressure - UTD450 is 450 PSIG
Connector Selection to use with UTD450
- UC450 (No Strainer)
- UC450S (Strainer)
- UC450SB (Strainer & Blowdown Valve)
- UC45OSR (Strainer)
- UC450SBR (Strainer & Blowdown Valve)
- UC450SL (Strainer)
- UC450SBL (Strainer & Blowdown Valve)
