Description
Model: Universal Trap Modules and Connectors - Thermodynamic Trap Module UTD450SM & UTD600LSM Series Side Mount by Watson McDaniel
NPT Size/Connection: Universal
Weight lbs: 2.5
Connection: 2 bolt
Series: UTD450SM & UTD600LSM
PMO PSIG: 450 & 600
The QUICK-CHANGE Universal Trap-Connector System with multiple choices for trap modules and multiple choices for connectors are used in steam systems where a simplified and economical maintenance program of steam traps is desired. These Universal Style quick replacement steam traps can be used on steam supply lines as well as for tracing and small process applications. They are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities.

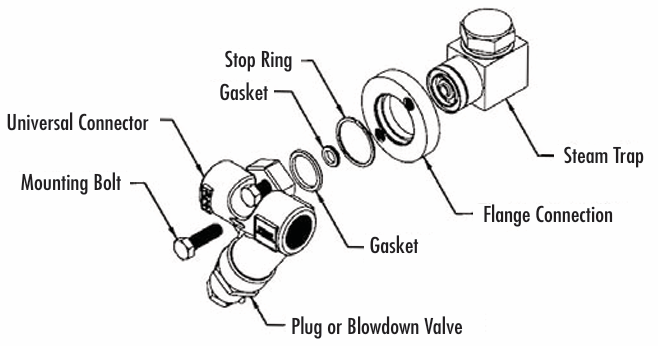

The All-Stainless Steel Universal Style Steam Traps feature a permanent installation of the Universal Connector with a 2-bolt mounting arrangement for the Universal Steam Trap Module, allowing the Steam Trap to be removed and replaced in minutes:
- Steam trap is replaced without having to unthread piping
- By removing only 2 bolts with a socket or open-end wrench
- Trap module can swivel 360º on the universal connector allowing proper orientation

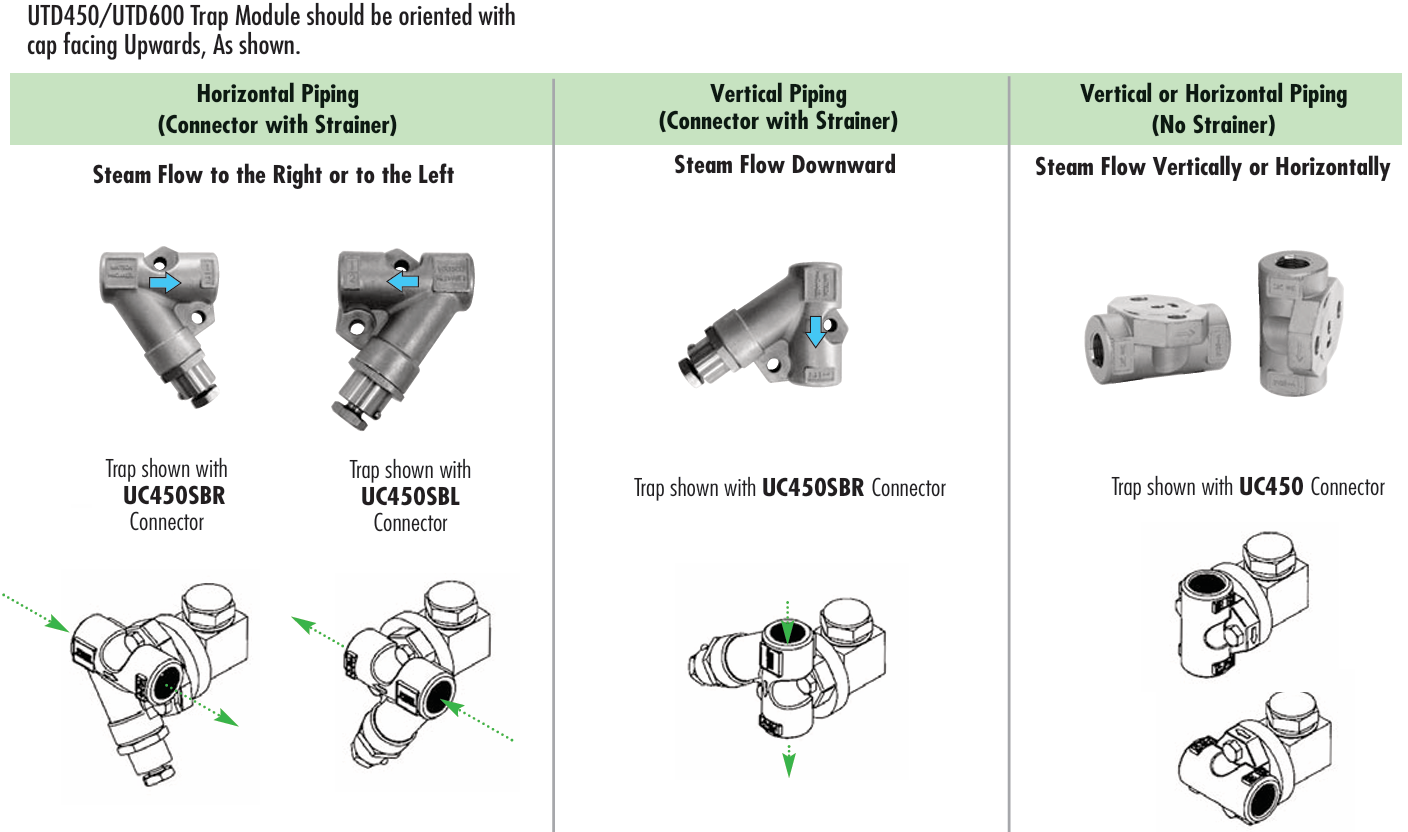

The UTD450SM and UTD600LSM Thermodynamic Trap Modules were designed to work as drip traps for the draining of condensate from steam mains and other steam supply lines. These steam traps can be used on either vertical or horizontal piping installations and mount to any 2-bolt Quick-Change Universal Connector.
UTD450LSM is Low-Capacity Model.

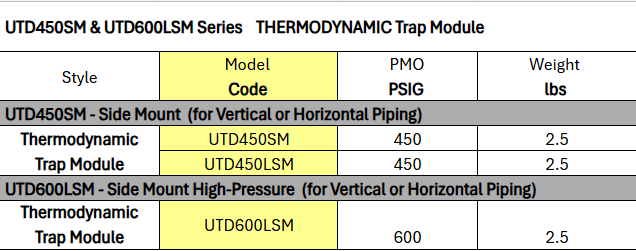

UTD450SM vs UTD600LSM Series
- UTD450SM – Side Mount (for Vertical or Horizontal Piping) and Max Operating Pressure - UTD450SM is 450 PSIG
- UTD600LSM – Side Mount High-Pressure (for Vertical or Horizontal Piping) and Max Operating Pressure - UTD600LSM is 600 PSIG
Connector Selection to use with UTD450SM & UTD600LSM:
- UC450 (No Strainer)
- UC450SR (Strainer)
- UC450SBR (Strainer & Blowdown Valve)
- UC45OSL (Strainer)
- UC450SBL (Strainer & Blowdown Valve)
- UTS600R (Test Station)
