WFLH Flash Steam Recovery Vessels

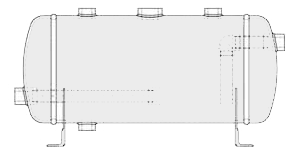

The WFLH Series Flash Steam Recovery Vessels are installed in condensate return systems in order to capture and utilize the flash steam coming off of the hot condensate. This flash steam is typically piped away for use on low-pressure steam processes. An optional sparge pipe is used to diffuse the incoming condensate. An internal drop leg is available to allow discharge condensate to be drawn from the bottom of the tank where temperature will be cooler. ASME Code Stamped.
An optional sparge pipe is used to diffuse the incoming condensate. An internal drop leg is available to allow discharge condensate to be drawn from the bottom of the tank where temperature will be cooler. ASME Code Stamped.
Options: Integral sparge pipe, internal drop leg, flanged connections, 300# design, etc.; Internal drop leg is no-charge option if added at time of order. Consult factory.
