WFPV Freeze Protection Valve
The WFPV Freeze Protection Valve is used for freeze protection on pipes, valves, fittings, pumps, condensate systems, safety showers, fire lines, spray nozzles, freeze sensitive equipment or as backup protection on steam tracing lines.
• Corrosion resistant stainless steel body
• Long service life
• Narrow temperature band
• System pressures will not affect opening temperature
How It Works

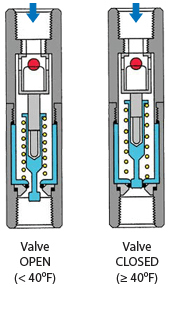

A thermostatic element senses water temperature in the valve. If the temperature falls below 35ºF, the valve will modulate open allowing water to drain from the system. The valve will remain open as long as the water flowing by the sensing element is less than 40ºF. When the water temperature rises above 40ºF, the valve will close.
Installation and Maintenance
Unit should be installed in a vertical orientation with flow direction downward. For full details, see Installation and Maintenance Manual.
