Description
Total Volume: 132.0
Acceptance: 132.0
Diameter: 31
Height: 61
System Connection: 1½

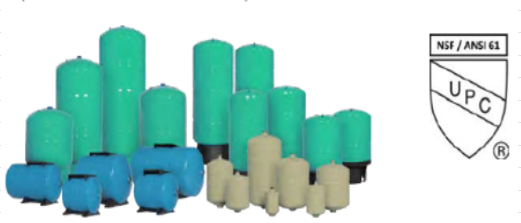

Wilo Hydropneumatic Tanks – Non-ASME Rated
The Wilo Hydropneumatic Tank – Non-ASME series is built for water system applications that require reliable pressure regulation without ASME certification. These tanks provide dependable performance for residential, agricultural, and light-commercial systems. Their welded steel construction and high-acceptance design ensure consistent pressure management and long service life.
- Certification: Non-ASME rated for general water system use
- Maximum Pressure: Typically up to 125 PSI
- Construction: Welded steel tank with internal air cushion
- Applications: Booster pump systems, irrigation, water well systems, pressure stabilization
- Features: High acceptance volume, durable exterior finish, compact vertical design
Model Listing
| Model | Total Volume (gal) | Acceptance (gal) | Diameter (in) | Height (in) | System Connection (in) | Approx. Weight (lbs) | Article Number | List Price (USD) |
|---|---|---|---|---|---|---|---|---|
| WX 8 | 2.1 | 2.1 | 12 | 25 | 3/4 | 7 | 2701537 | 294 |
| WX 19 | 5 | 5 | 11 | 16 | 3/4 | 13 | 2701538 | 431 |
| WX 24 | 6.3 | 6.3 | 14 | 13 | 3/4 | 15 | 2701539 | 652 |
| WX 60V | 16 | 16 | 15 | 34 | 1 | 39 | 2701540 | 1005 |
| WX 80V | 21 | 21 | 18 | 34 | 1 | 49 | 2701541 | 1271 |
| WX 100V | 26 | 26 | 18 | 38 | 1 | 50 | 2701542 | 1677 |
| WX 200V | 52 | 52 | 22 | 49 | 1½ | 112 | 2701543 | 2600 |
| WX 300V | 80 | 80 | 25 | 55 | 1½ | 141 | 2701544 | 3251 |
| WX 500V | 132 | 132 | 31 | 61 | 1½ | 265 | 2701545 | 6138 |
| WX 750V | 198 | 198 | 31 | 79 | 1½ | 330 | 2701546 | 7734 |
| WX 1000V | 264 | 264 | 37 | 77 | 2 | 398 | 2701547 | 11257 |
| WX 2000V | 528 | 528 | 50 | 84 | 2 | 835 | 2701548 | 22549 |
Applications
- Residential and commercial water supply systems
- Irrigation and agricultural water pressure stabilization
- Booster pump systems
- General hydropneumatic water storage
Note: Specifications and pricing are based on manufacturer-provided product data.
NOTE: We will contact you during order fulfilment to discuss shipping and handling costs for products weighing more than 150 pounds. These costs will be billed separately.
